- Professional, durable design
- Clear tank allows fuel cleaner level to be monitored during service
- Service valve to control process flow of the fuel system cleaners
- Rectus style, female quick connect for adapter connection
- For fuel induction service use flexible fuel induction service ‘S’ adapter #31608S (not included)
- For fuel injection service use fuel injection kit #FIKM000 (not included)
- Weight 3lbs

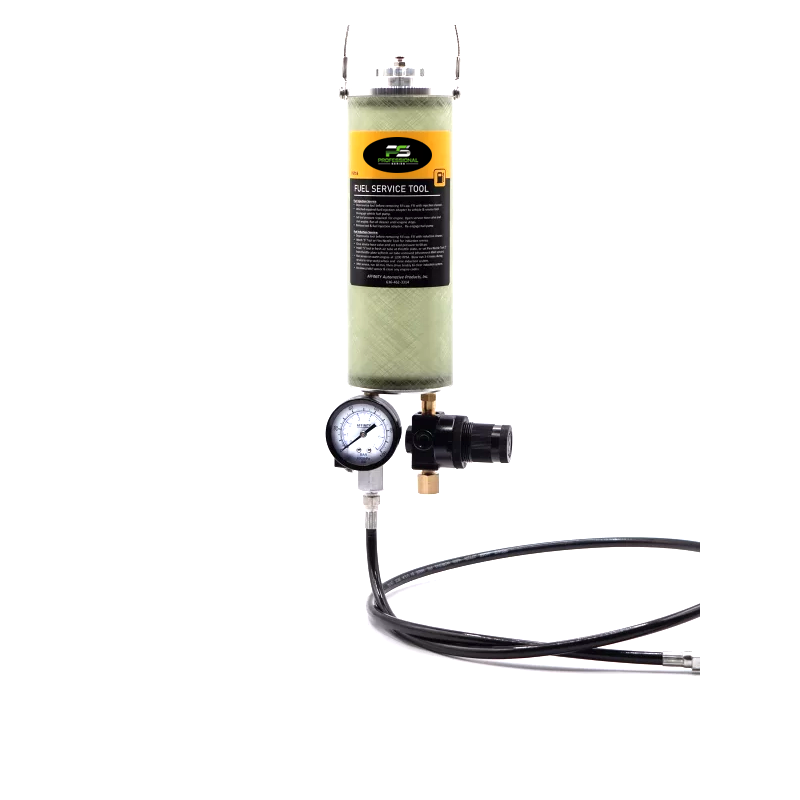

Fuel Service Tool 16 oz.
The multipurpose, 16 oz EG Fuel Service Tool can be used to clean both gasoline fuel induction systems through the throttle body and fuel injectors/combustion chambers when connected to the fuel rail. This professional-grade tool is designed with a clear tank to allow the cleaner level to be monitored during the service.
Free shipping on orders over $50!
- No-Risk Money Back Guarantee!
- No Hassle Refunds
- Secure Payments
FUEL INJECTION SERVICE:
-
- Depressurize tool before removing fill cap. Fill with injection cleaner.
- Attached required fuel injection adapter to vehicle and service tool. Disengage vehicle fuel pump.
- Set tool pressure required for engine. Open service hose valve and start engine. Run all cleaner until engine stops.
- Remove tool & fuel injection adapter. Re-engage fuel pump.
FUEL INDUCTION SERVICE:
-
- Depressurize tool before removing fill cap. Fill with injection cleaner.
- Attach “S” Tool or Flex Nozzle Tool for induction service.
- Close service hose valve and set tool pressure to 60 psi.
- Install “S” tool in fresh air tube at throttle plate, or set Flex Nozzle Tool from throttle plate with fresh air tube removed (disconnect MAF sensor).
- Run service on warm engine at 1200 RPM. Blow out 3-4 times during service to strip soot/carbon and clear induction system.
- After service, run 10 min. then drive briskly to clear induction system.
- Reconnect MAF sensor and clear any engine codes.
